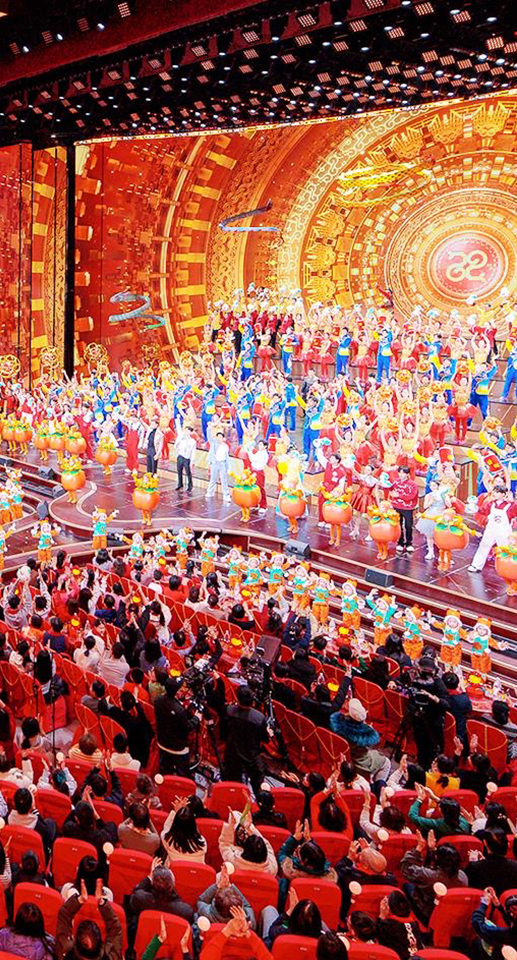

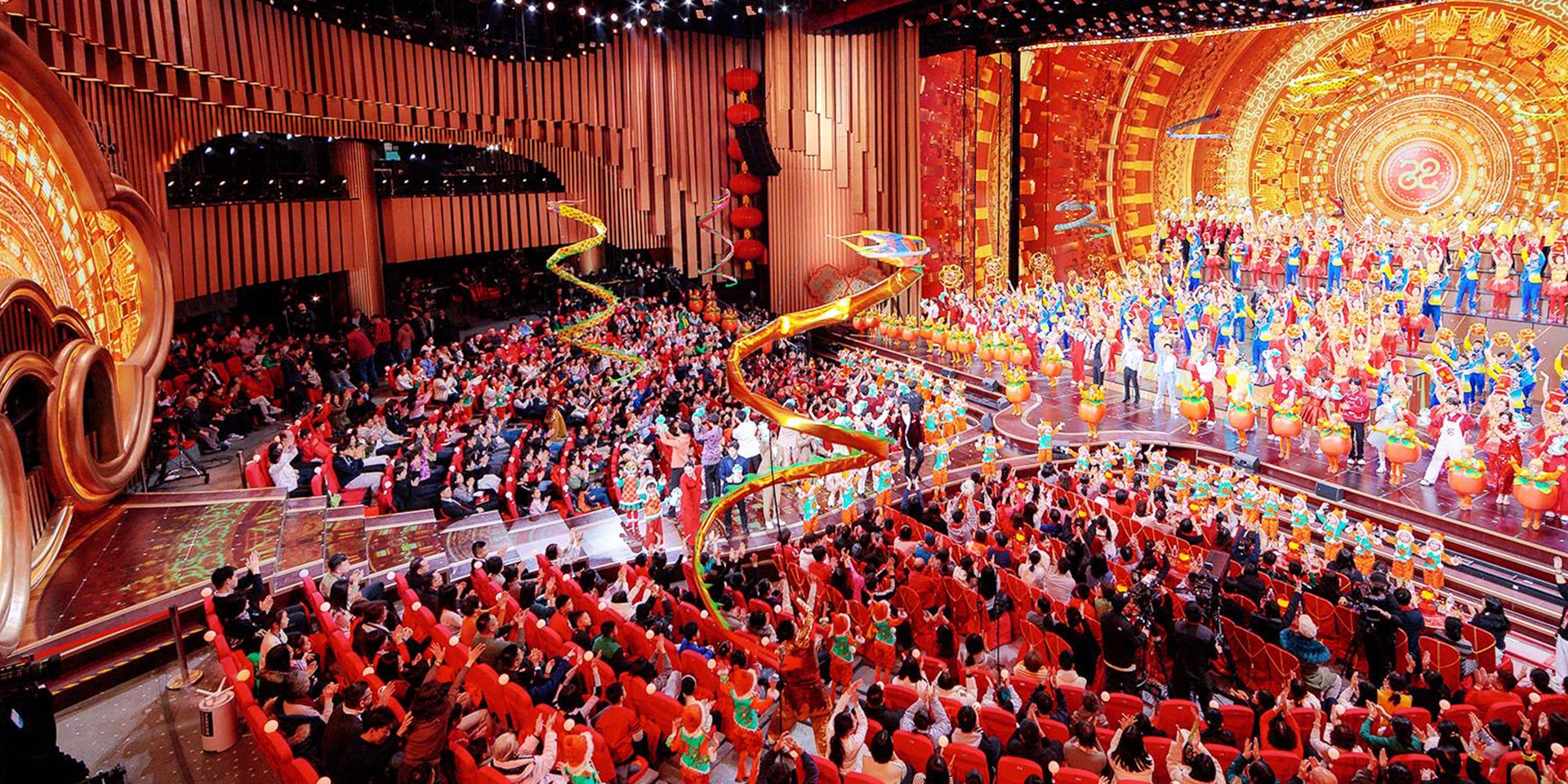

The 2025 Spring Festival Gala Stage: A Masterpiece of Technological Integration

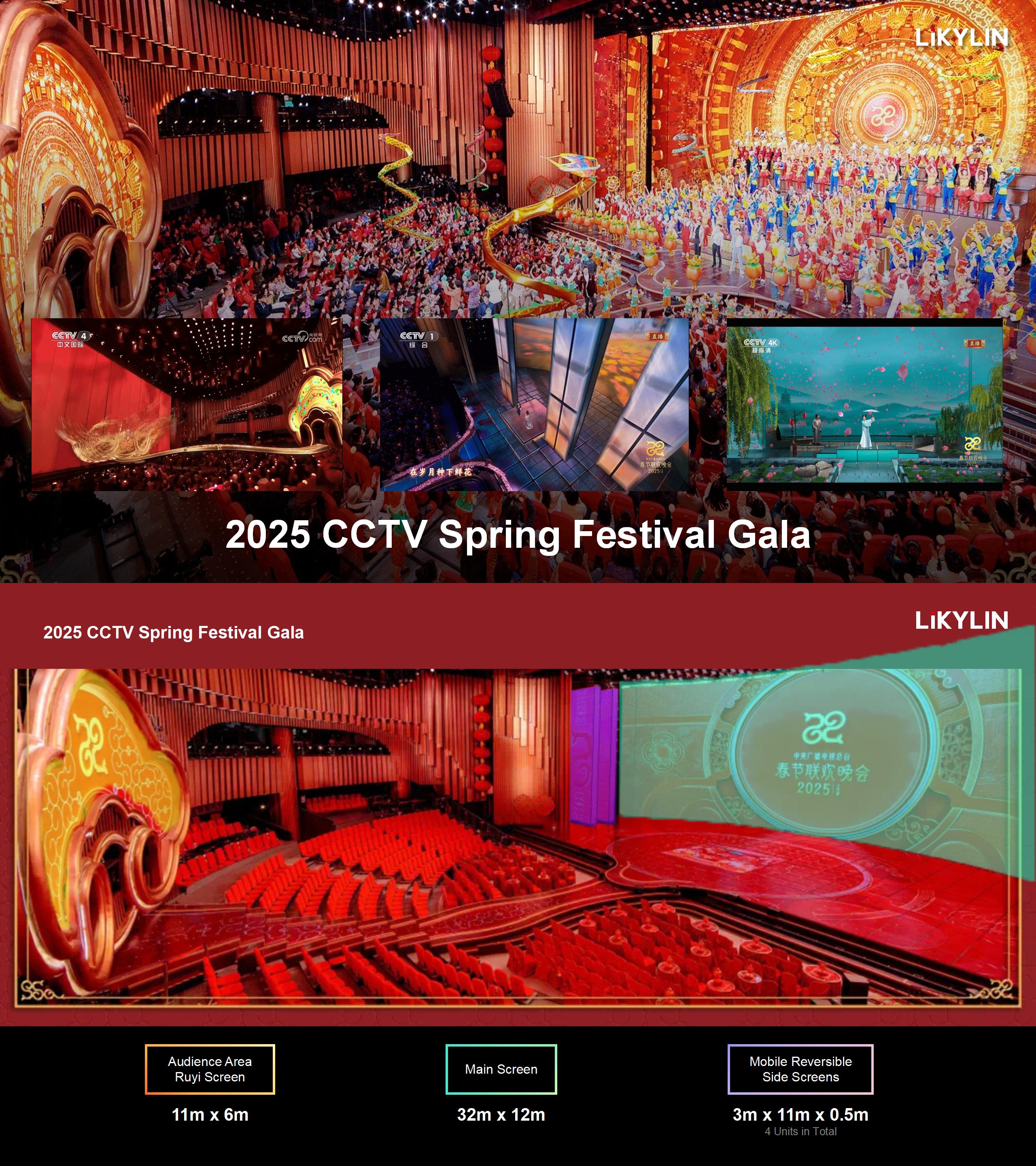

Audience Area Ruyi Screen
Main Screen
Mobile Reversible Side Screens
2025 CCTV Spring Festival Gala
LiKYLIN Group's cutting-edge display technology elevated the "Ruyi"-themed stage to new heights. The 750㎡ dual-power, dual-signal LED display system – featuring modular configurability and seamless splicing capabilities – became the visual cornerstone of the production.Core Display Architecture:
Zoned Immersive Canvas:
· A-Zone: 32m × 12m primary backdrop screen
· C-Zone: 4 × movable flip-side panels (3m × 11m × 0.5m)
· F-Zone: 11m × 6m audience-facing "Ruyi Screen"
· Collectively enabling 360° visual coverage with theater-grade reliability.
Redundancy Engineering:
· Dual-Signal Hot-Swap: Parallel 12G-SDI inputs (8K/4K servers) → Primary/backup processors operating synchronously
· Dual-Power Resilience: Independent power lanes with instantaneous failover
· Achieving zero-interruption performance during live broadcast.
N-Series Cabinet Innovation:
· Structural Advantage: Ultra-thin profile + military-grade durability
· Dynamic Configurability: Supports radial, concave, right-angle, and free-form curvature splicing
· Operational Efficiency: Tool-free installation & front/rear service access
